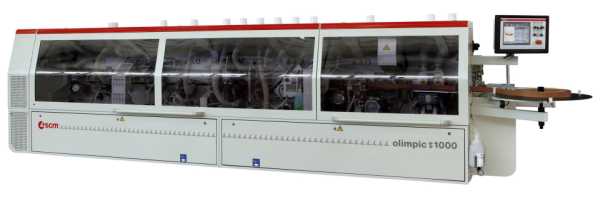

Olimpic s 1000

Flexible y personalizable gracias a una rica equipación de base como por ejemplo el sistema de control «Star Touch» en todas las versiones y una amplia elección de opcionales.
Permite aplicar el canto en macizo hasta 15 mm de espesor, cantos finos, cantos con radio.
Productiva gracias a la velocidad de avance 12 y 18 m/min también en el redondeado.

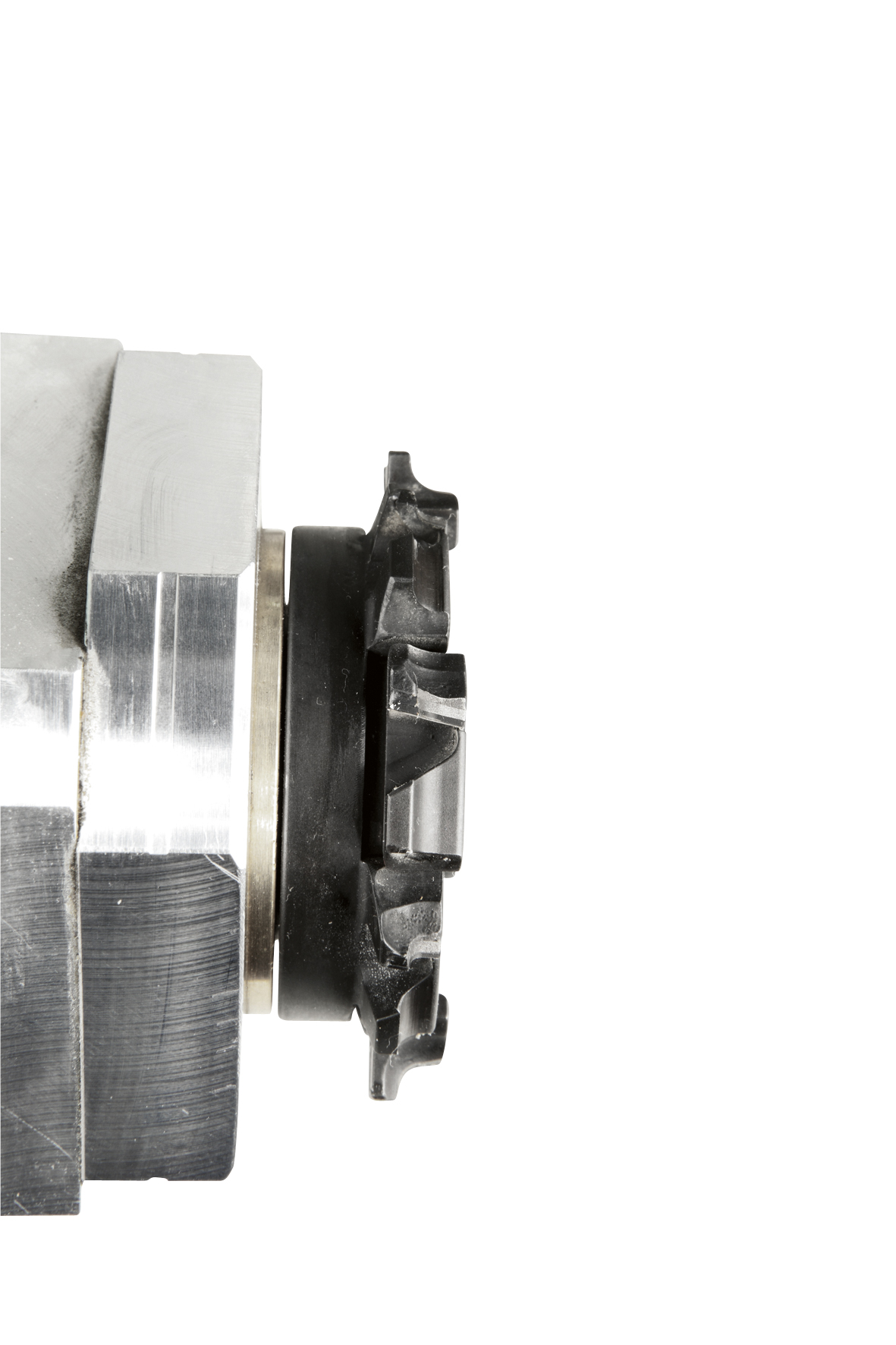

«Round 2M»: incomparable productivity and quality with 2 motor technology. The features of the group (Scm patent) allows an 18 m/min rounding speed as well as the possibility of the simultaneous edge trimming operation. Two operations, in a single group, occupying less space, allows for a reduction in time for edge banding of panels.

«3 Edge» device: a patent rounding 3 different edges. The change of the rounding radius of the 4M rounding group is automatically carried out thanks to the exclusive patented dual tool solution that allows the immediate selection of the processing of 3 different edge thickness.

«RAS/S 2P» edge scraping group: 2 radii, always available. The change of the machining radius is performed automatically and without errors using the two- position pneumatic device, that allows fast and precise positioning of tools and front copiers in relation to the selected edge thickness.

«Startouch control»: just a «touch» for using the machine. Error free programmingwith the large dimensioned touch- screen display and its customised graphics that allows an intuitive and easy selection of the main machine functions.

«Netline»: programming machines automatically. The automatic programming of beam saws, edge banders and machining centres, interconnected via a PC, with advanced software, allows the creation of complete projects without any operator intervention and no risk of errors.



olimpic s 1000
Espesor panel	10 – 60	mm
Espesor canto	0,4 -15	mm
Velocidad de avance	12 – 18 (10-22)	m/min
Aire comprimido	6	bar
