Descripción
Chapeadora flexible y electrónica.
Alta personalización con numerosas soluciones disponibles para las diversas exigencias productivas.
Productiva gracias a la velocidad de avance de 12 o 18 m/min, también en redondeado.
Amplia gestión controlada de los grupos con un rápido cambio de trabajo entre los diversos tipos de canto, macizo hasta 12 mm.
Ventajas

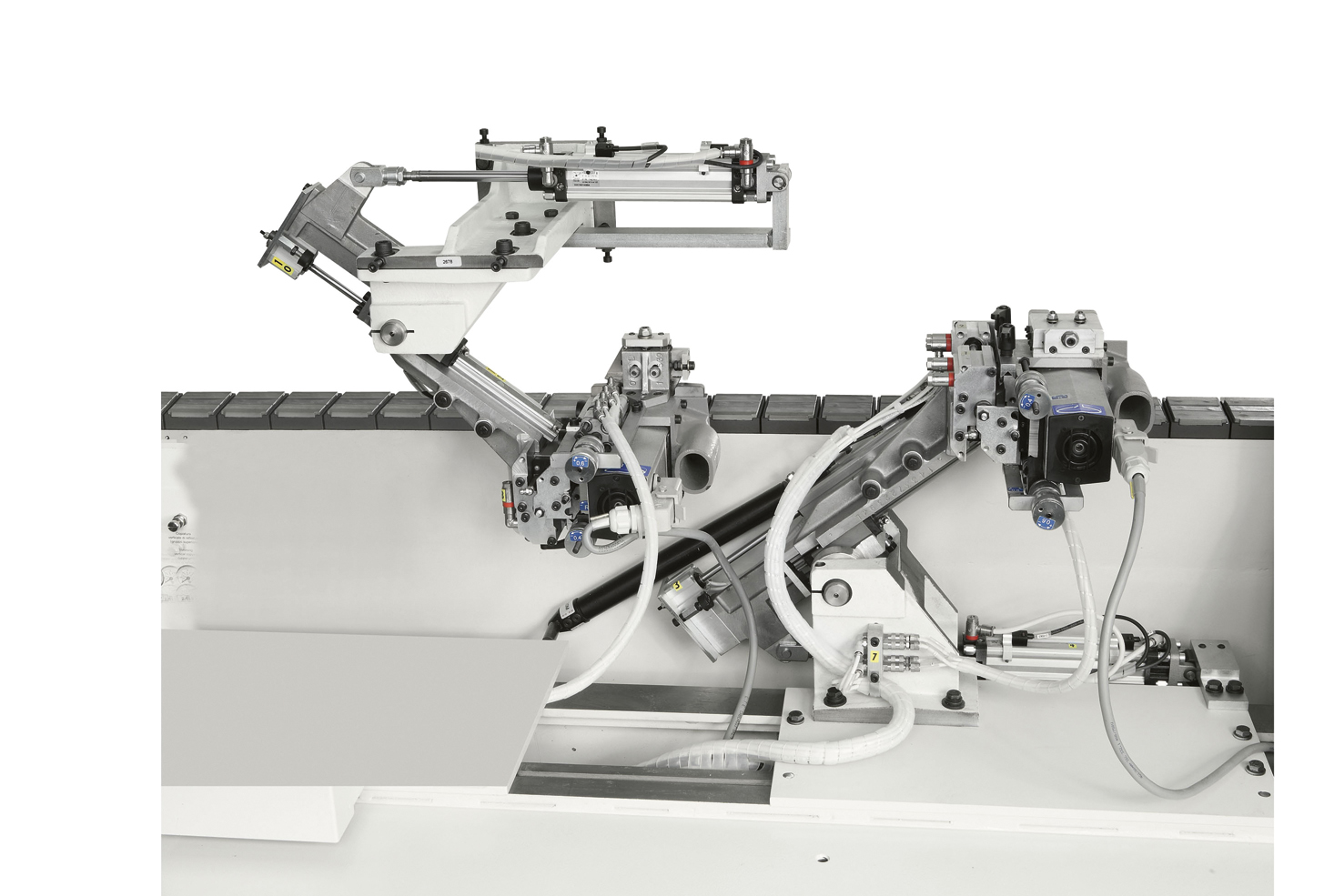

| “round 2M”: incomparable productivity and quality with 2 motor technology. The features of the group (Scm patent) allows an 18 m/min rounding speed as well as the possibility of the simultaneous edge trimming operation. Two operations, in a single group, occupying less space, allows for a reduction in time for edge banding of panels. |

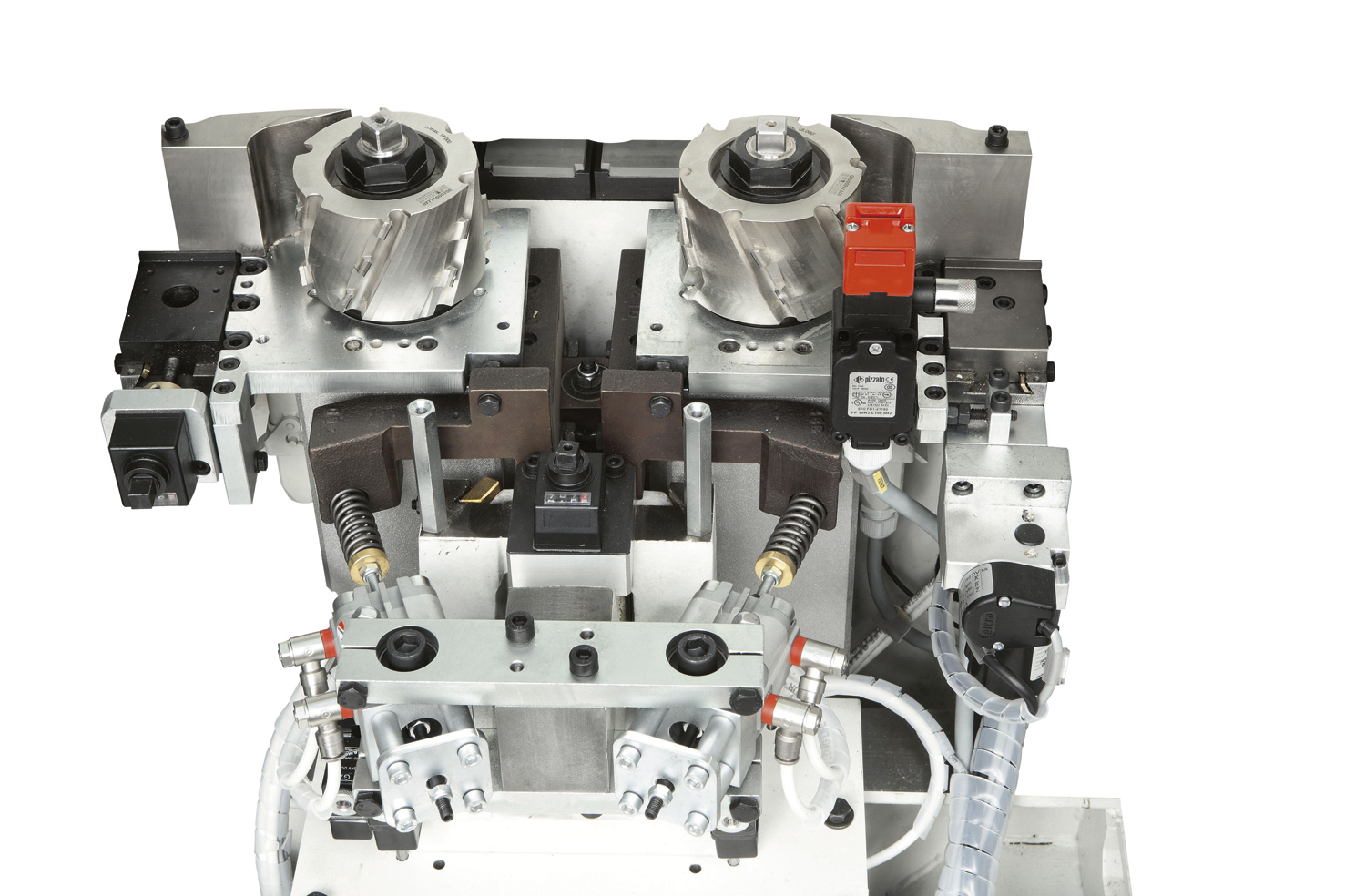

| RT-E panel edge trimming group: a perfect joint line of the edge. An optimum panel edge trimming group before the edge gluing, thanks to the use of the front copying devices (optional feature), that allow a constant removal over the entire panel length, maintaining the same work piece geometry. |

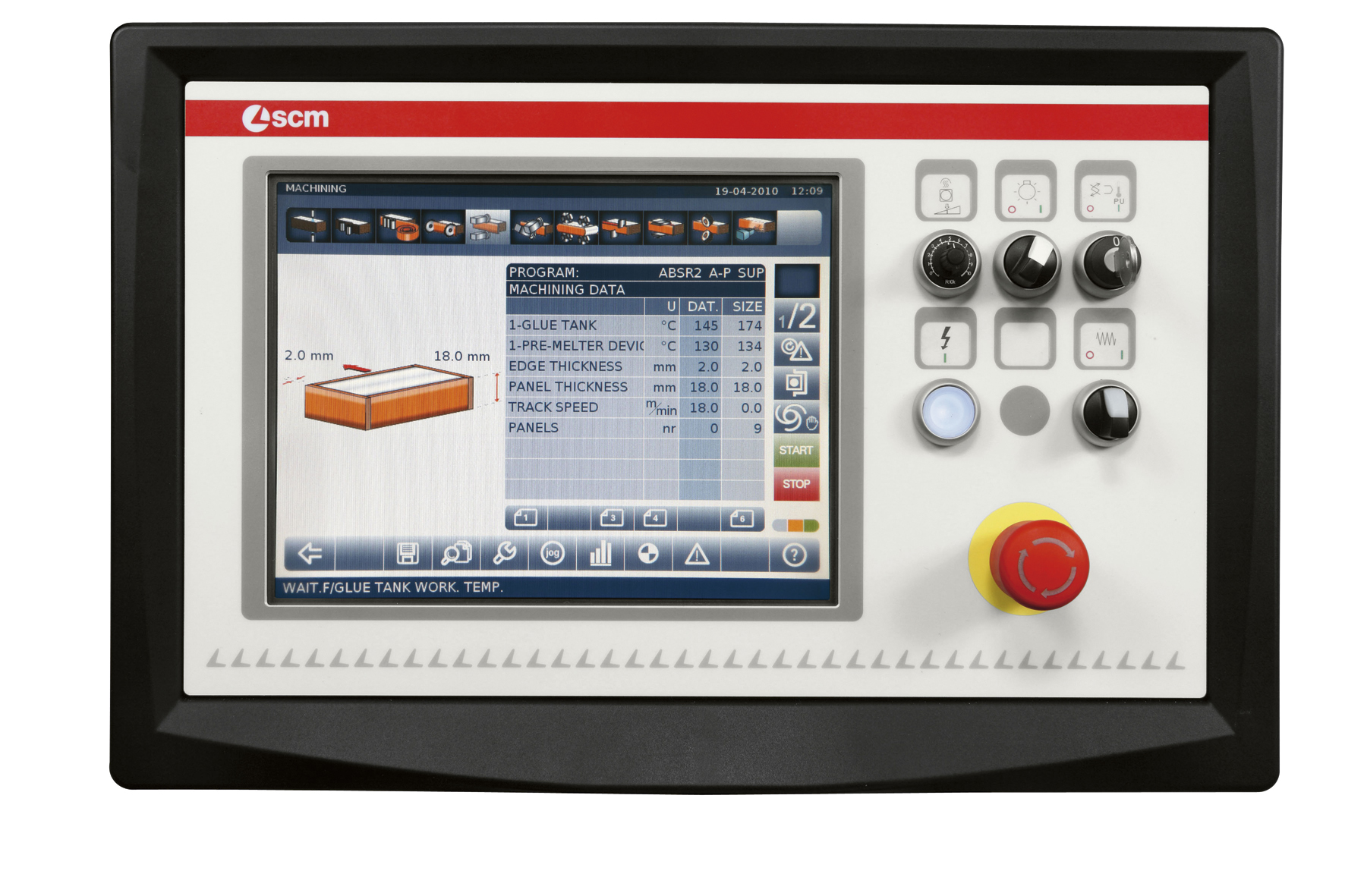

| “Startouch» control: just a “touch” for using the machine. Error-free programmingwith the large dimensioned touch- screen display and its customised graphics that allows an intuitive and easy selection of the main machine functions. |

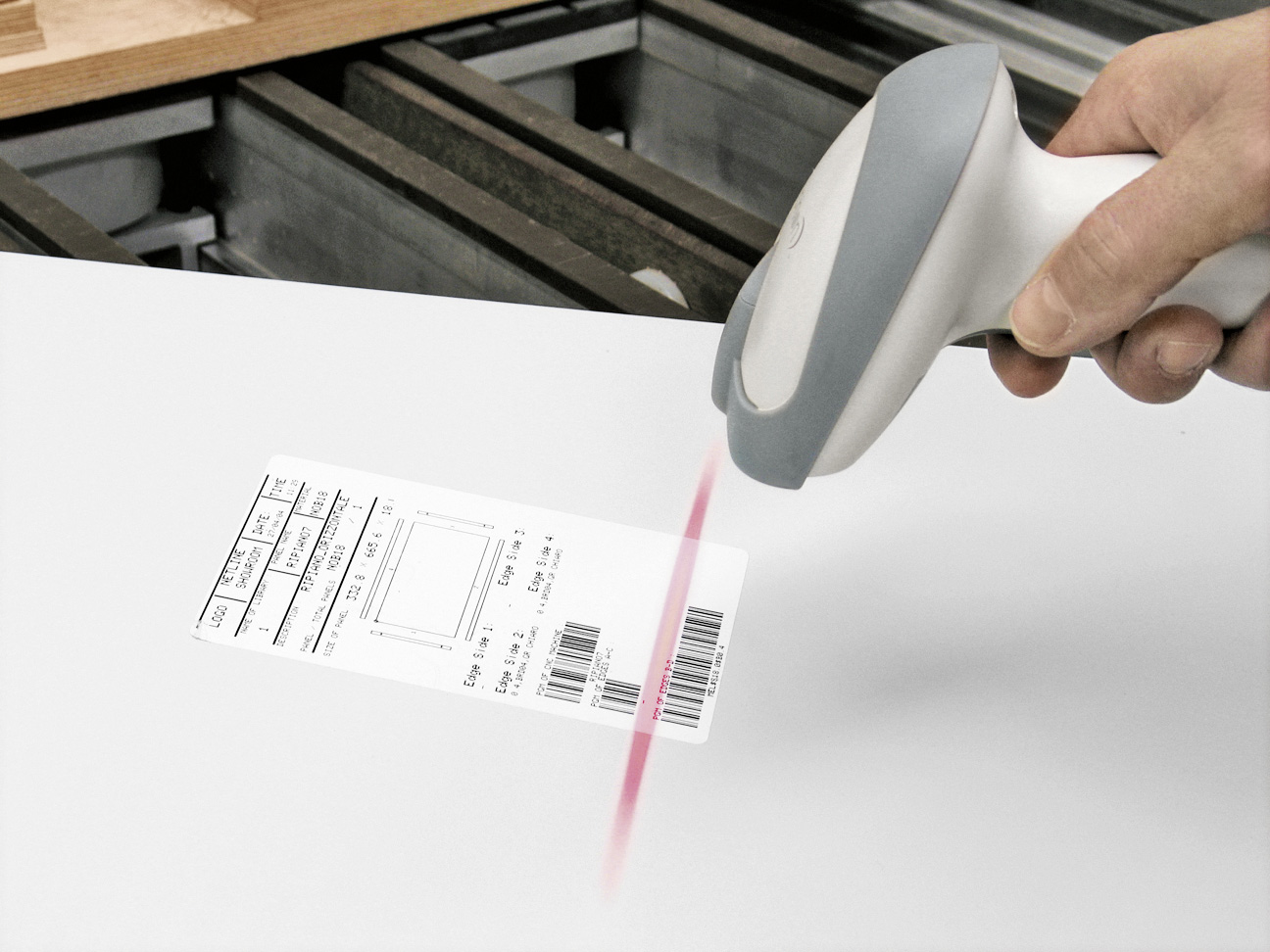

| “Netline”: programming machines automatically. The automatic programming of beam saws, edge banders and machining centres, interconnected via a PC, with advanced software, allows the creation of complete projects without any operator intervention and no risk of errors.
|
Ficha técnica

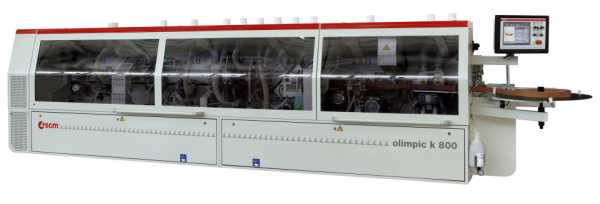

| olimpic k 800 | ||
|---|---|---|
| Espesor del panel | 8-60 | mm |
| Espesor canto | 0,4-8 (opt. 12) | mm |
| Velocidad de avance | 12-18 | m/min |
| Aire comprimido | 6 | bar |
