Descripción
Ventajas
|
End cutting unit: cut and «radius» in a single operation. |
| Rounding unit: edge angles finishing on straight and shaped panels. Rounding of front and rear edge angle on straight, chamfered and post-formed panels. The operation is automatically carried out by the unit and grants an optimal finishing, without necessity of further machining. |

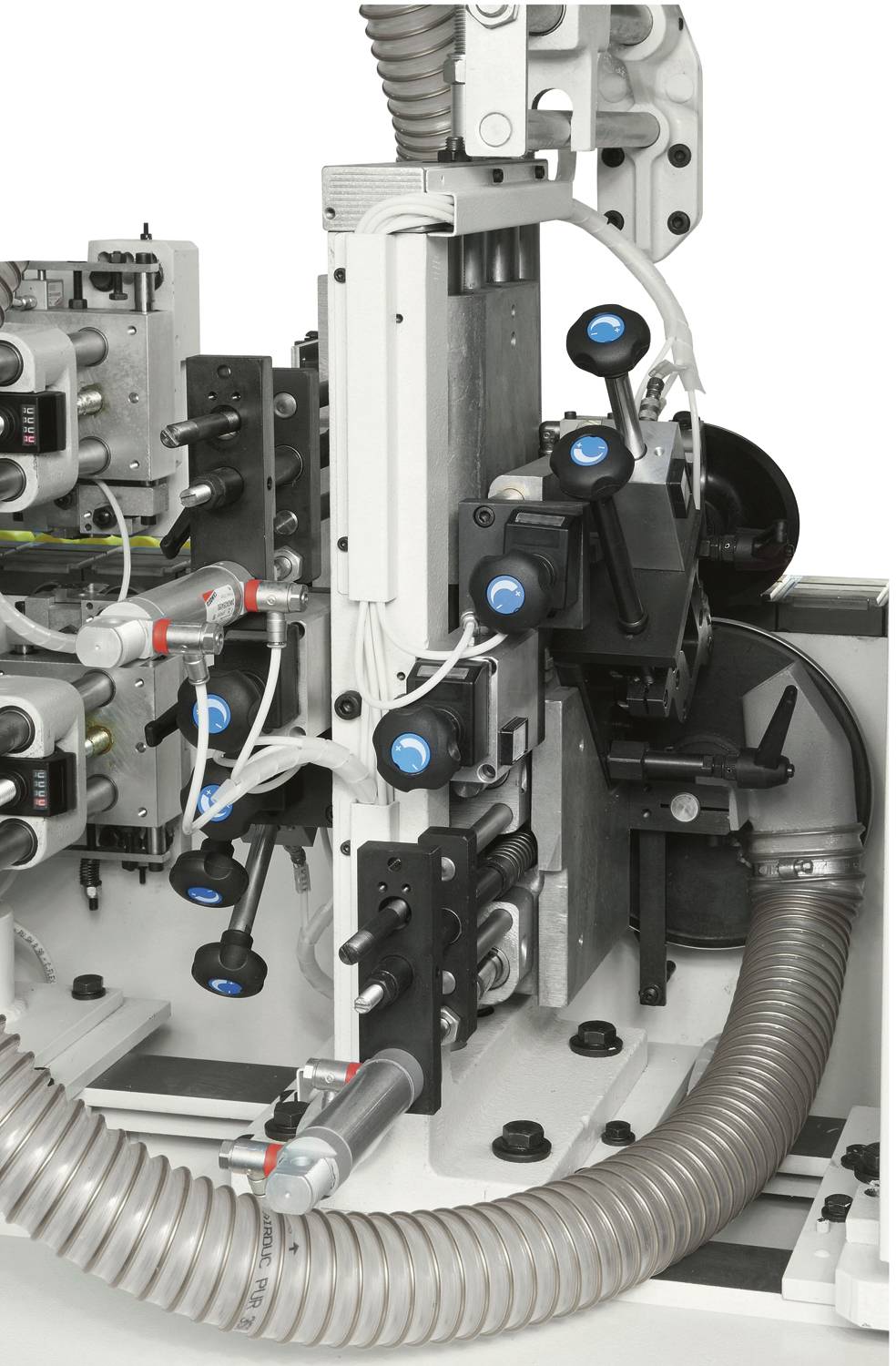

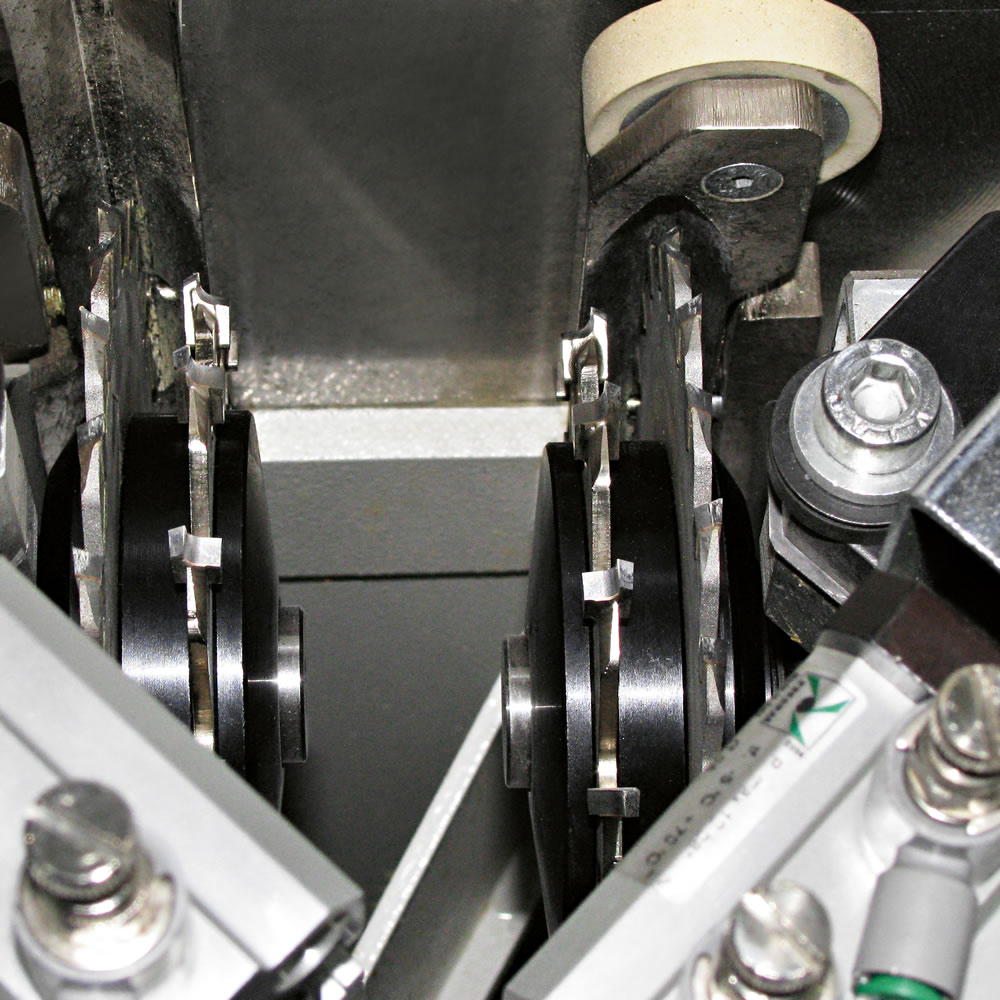

| Trimming unit: 3 different machining. Rapid machining changeover between thin, thick and solid wood edges due to the 3 working positions and the «Combi» tool supplied as a standard feature. |
Ficha técnica
| olimpic | k 360 | |
| Edge thickness | mm | 0,4 – 3 (6) |
| Panel thickness | mm | 8 – 50 (60) |
| Feed speed | m/min | 11 |
| Compressed air | bar | 6 |
