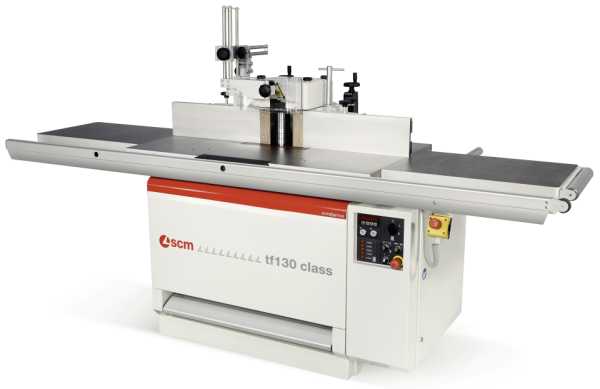

TF 130 Class

Electric and manual spindle moulder with fixed vertical spindle

Categorías: ,

Descripción

  • Movimentación manual para la subida/bajada del eje con visualizadores digitales eléctronicos para la individuación de las cotas de trabajo



Características técnicas TF130 CLASS
Dimensiones de la mesa de trabajo mm 1.200 x 730
Alura útil eje tupí Ø 30 – 35 (Ø 40 – 50)  eje fijo / intercambiable mm 140 (180)
Salienta de la base del eje desde la mesa  eje fijo  eje intercambiable mm 3040
Máx. diámetro herramienta escamotable por debajo de la mesa mm 300 x 85
Velocidad de rotación del eje tupí g/min. 3.000/4.500/6.000/7.000/10.000
Potencia motor principal / eléctromandrin  estándar  disponible sobre pedido kW (HP) 5,57,5
Diámetro externo boca de aspiraciónen la campana tupí mm 120
Diámetro externo bocas de aspiración en la bancada (versiones HE-ME de 7,5kW) mm 120
Instalación de aspiración  velocidad aire  consumo aire (versiones HE-ME de 7,5kW) m/sm3/h 201.700
Peso máquina base kg 475
Ventajas

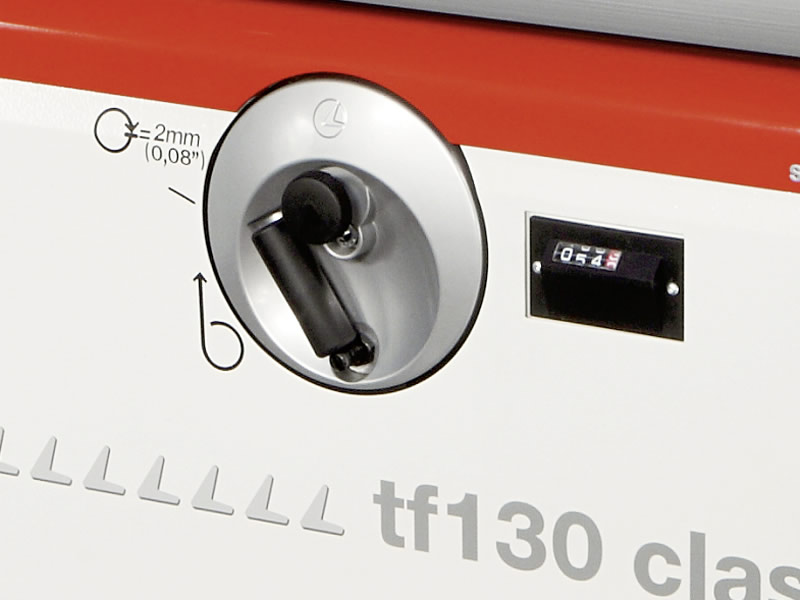

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.
«FAST» sectional worktable: the best support for the workpiece. Provides support for the work piece being machined also close to the tool, allowing the adjustment with mounted tools.

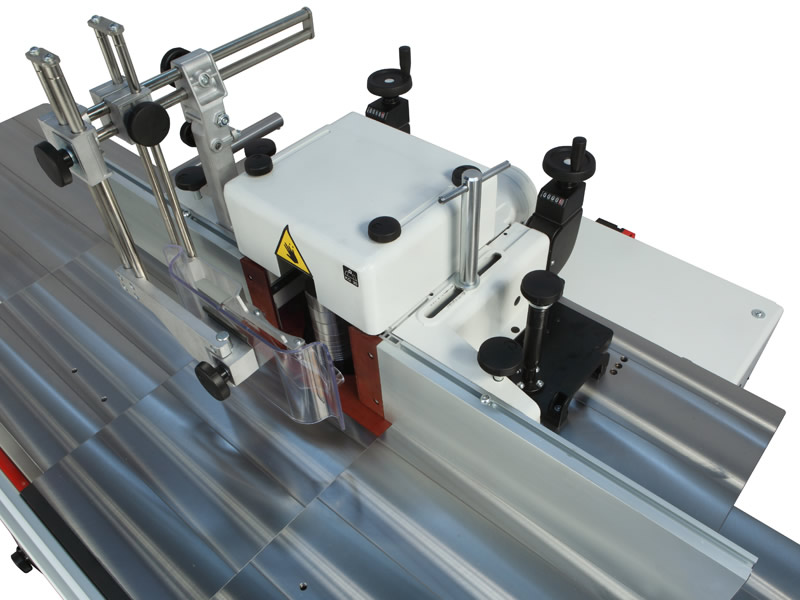

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.



Ficha técnica
class tf 130
Machine version electric or manual
Worktable dimension mm 1200×730
Spindle height Ø 30-35 (Ø 40 -50) mm 140 (180)
Spindle base projection from table mm 52 (30 versione PS)
Max. tool diameter retractable under work table (with “Fast” sectional table) mm 320 x 85 (300×85)
