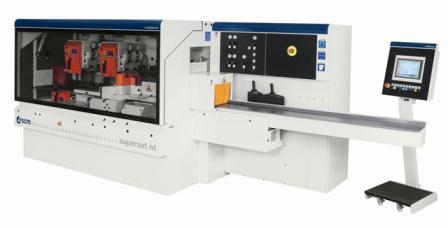

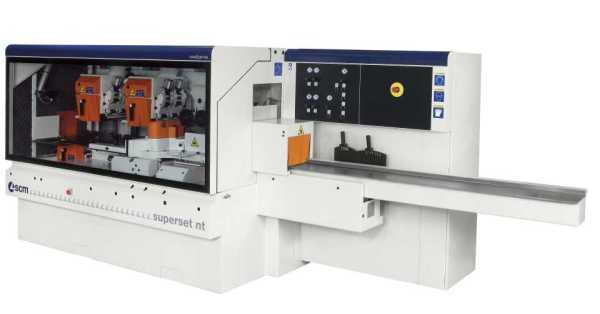

Superset NT – NTPL

Automatic Throughfeed Moulder

Descripción

Suitable for companies working various shifts, which can produce prismatic profiles, frames, profiles and linear parts for windows, doors, furniture, garden furniture, boat furniture, effective also for very small batches.

Ventajas

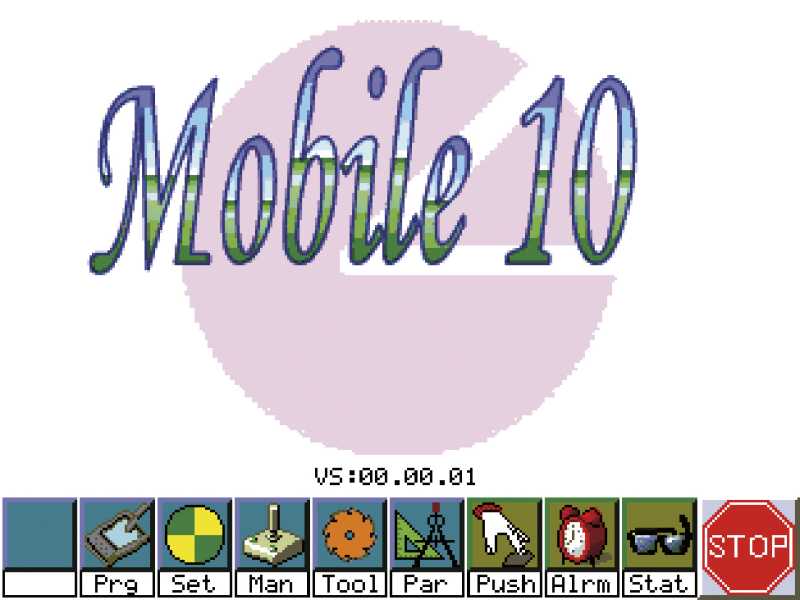

 «MOBILE 10»: the new generation electronic control
Fast and automatic machine setupEasy to use thanks to the instructions supplied by the machine software, which minimises risks of errors to a minimum.

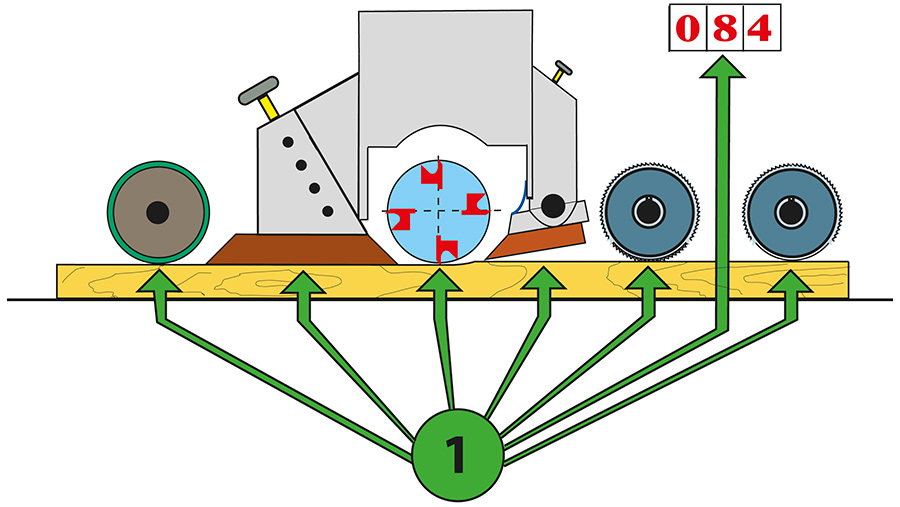

SET UP: Very simple profile changes
The patented “set up” system requires just one control making set-up times at part changeover up to twenty times faster.

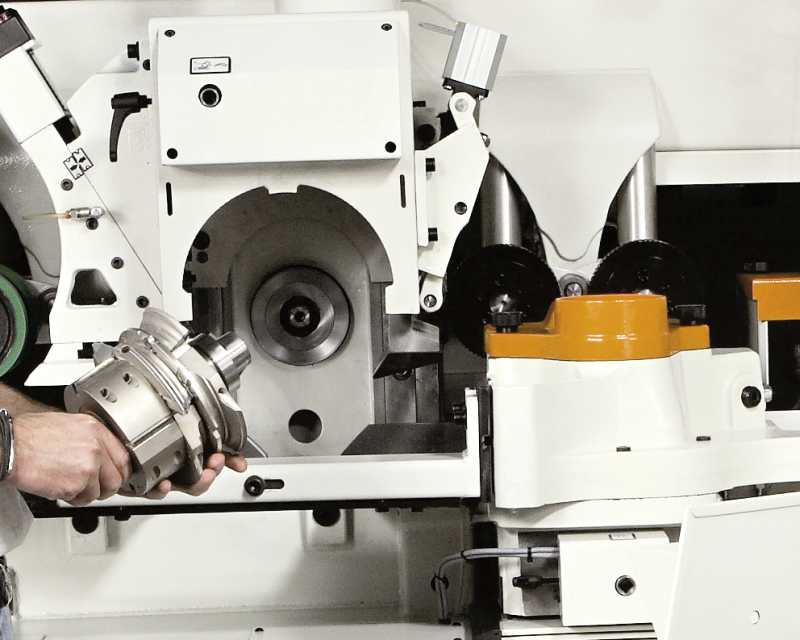

HSK TECHNOLOGY:  quick and precise tool change

The tool chuck spindle technology reduces downtime and improves the quality of the finished products with high ergonomic consideration for the operator.



Ficha técnica
Superset NT- NTPL
Composition from 4 to 7 spindles
Machining width : from 15 to 260 mm
Machining height: from 6 to 200 mm
Vertical spindles axial adjustment : 80 mm
Horizontal spindles axial adjustment: 45 mm
Moulding capacity: 50 mm
