Descripción

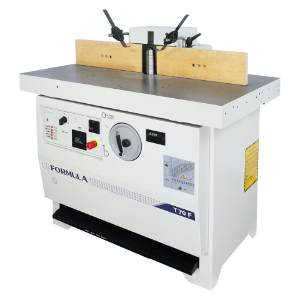

Spindle moulder with fixed spindle for craftsmen and carpentries, ideal for demanding use, both in performances and in flexibility terms, and particularly suitable for intensive machining of large dimensions solid wood.
Ventajas
Perfect and stable workpiece support with the cast iron tables with ground surface to guarantee maximum flatness. Extreme versatility: 5 spindle moulder speeds for different working needs. Fully customizable with technological solutions thought for various woodworking requirements, like the lateral table extensions with extractable front support, the lateral tenoning device, or both devices together.
Ficha técnica
| T 70 F | ||
| Spindle moulder speeds | 3000/4500/6000/7000/10000 | rpm |
| Max. useful spindle length | 180 | mm |
| Max. dimensions of tool lowered under table at 90° | 320 | mm |
| Max. tool diameter when tenoning | 350 | mm |
| Three-phase motor power starting from | 7 (8) kW – 50 (60) Hz |
