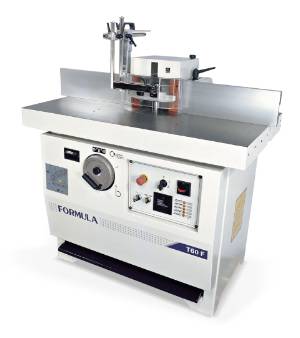

FORMULA T 60 F

Spindle moulder with fixed spindle

Categorías: ,

Descripción

Spindle moulder with fixed spindle, for demanding craftsmen and carpentries, that combines high performance and absolute reliability with precise, flexible operation.
Ventajas

Perfect and stable workpiece support with the cast iron tables with ground surface to guarantee maximum flatness. Extreme versatility: 5 spindle moulder speeds for different working needs. Fully customizable with technological solutions thought for various woodworking requirements, like the lateral table extensions with extractable front support, the lateral tenoning device, or both devices together.

Ficha técnica
T 60 F
Spindle moulder speeds 3000/4500/6000/8000/10000 rpm
Max. useful spindle length 180 mm
Max. dimensions of tool lowered under table at 90° 320 mm
Max. tool diameter when tenoning 350 mm
Three-phase motor power starting from 5 (6) kW – 50 (60) Hz
