CNC Machining Centre for Wooden Walls

Categorías: ,

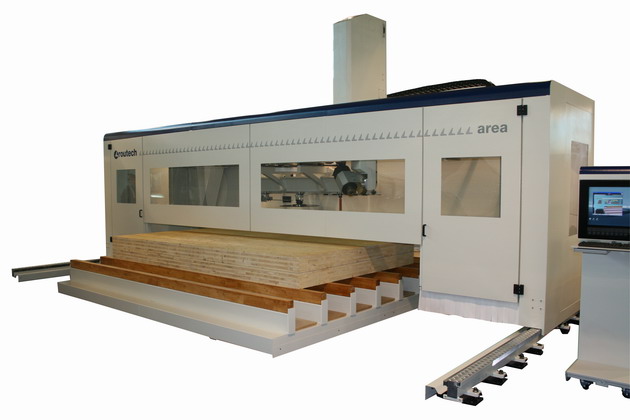

Area is the innovative CNC machining centre with a mobile bridge structure and modular composition for machining structural wooden walls. It allows for a worktable up to 4.5 m wide and 50 m long.

  • Easy access to the worktable for effortless loading of the walls thanks to the use of sliding tracks with a low vertical profile and reduced floor requirement.
  • Stress-free machining of very thick parts and use of blades up to 1050 mm, with the specially designed machining head with 5 axes.
  • Easy to use machine and total integration with the most common CAD design tools, with the QuickLinK software.
  • No risk of collision and precise calculation of the work times thanks to the 3D simulation station.
Ficha técnica
Dimensions of the work piece to be processed:
Width 3,2 or 4,5 metres
Length up to 50 metres
Thickness 360 mm.
Tool magazines 12 positions
Saw blade diameter up to 1050 mm
